Our Products

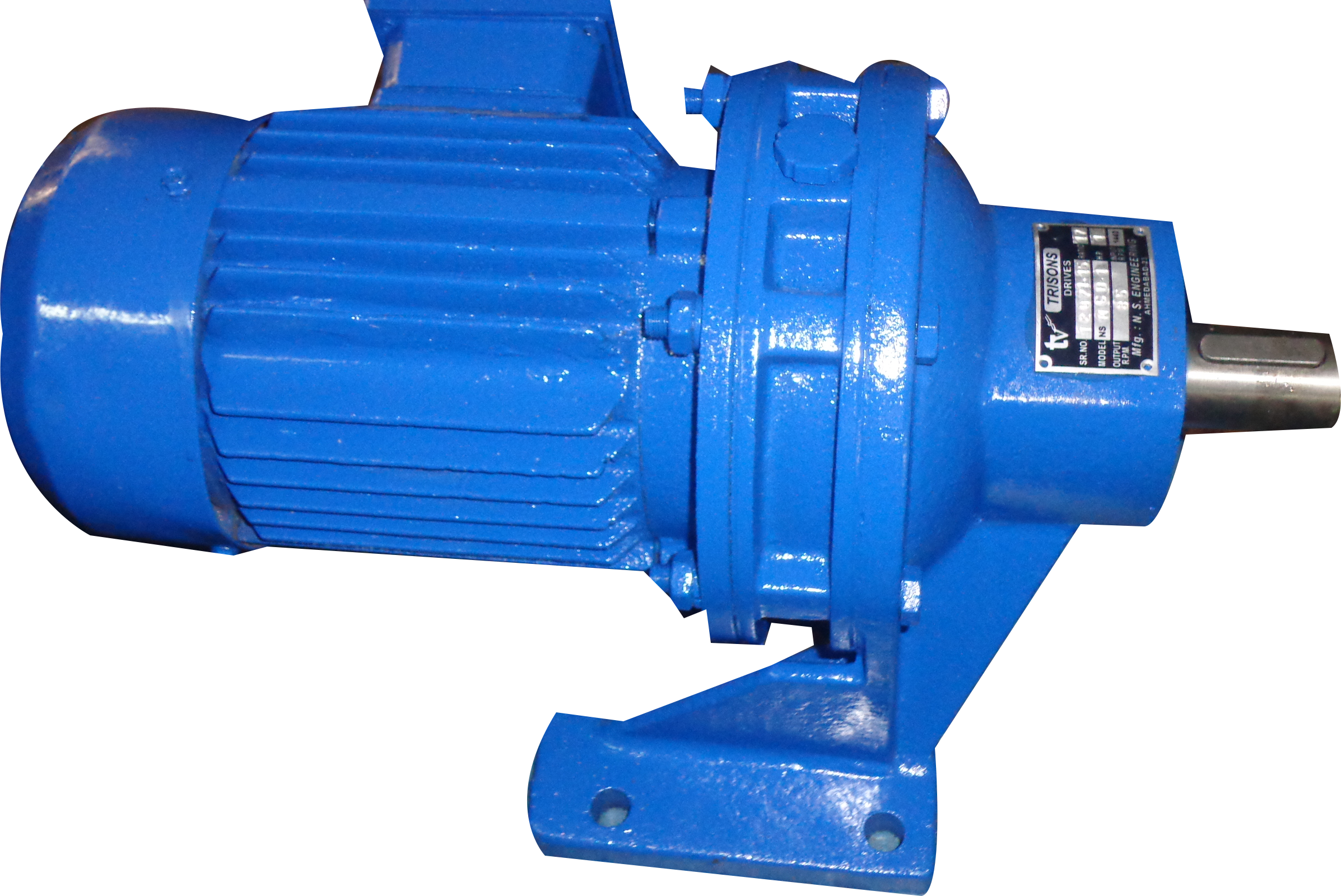

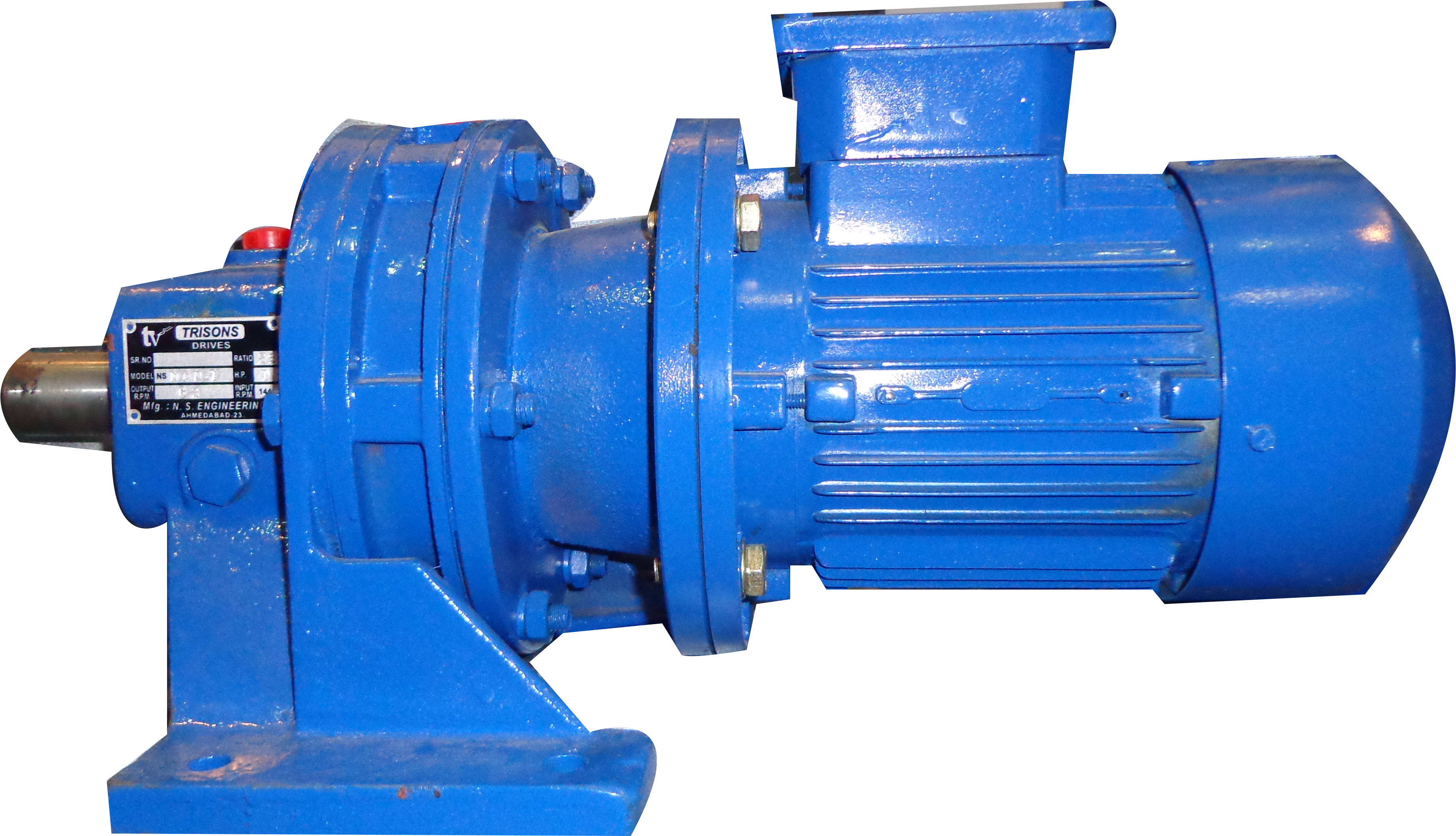

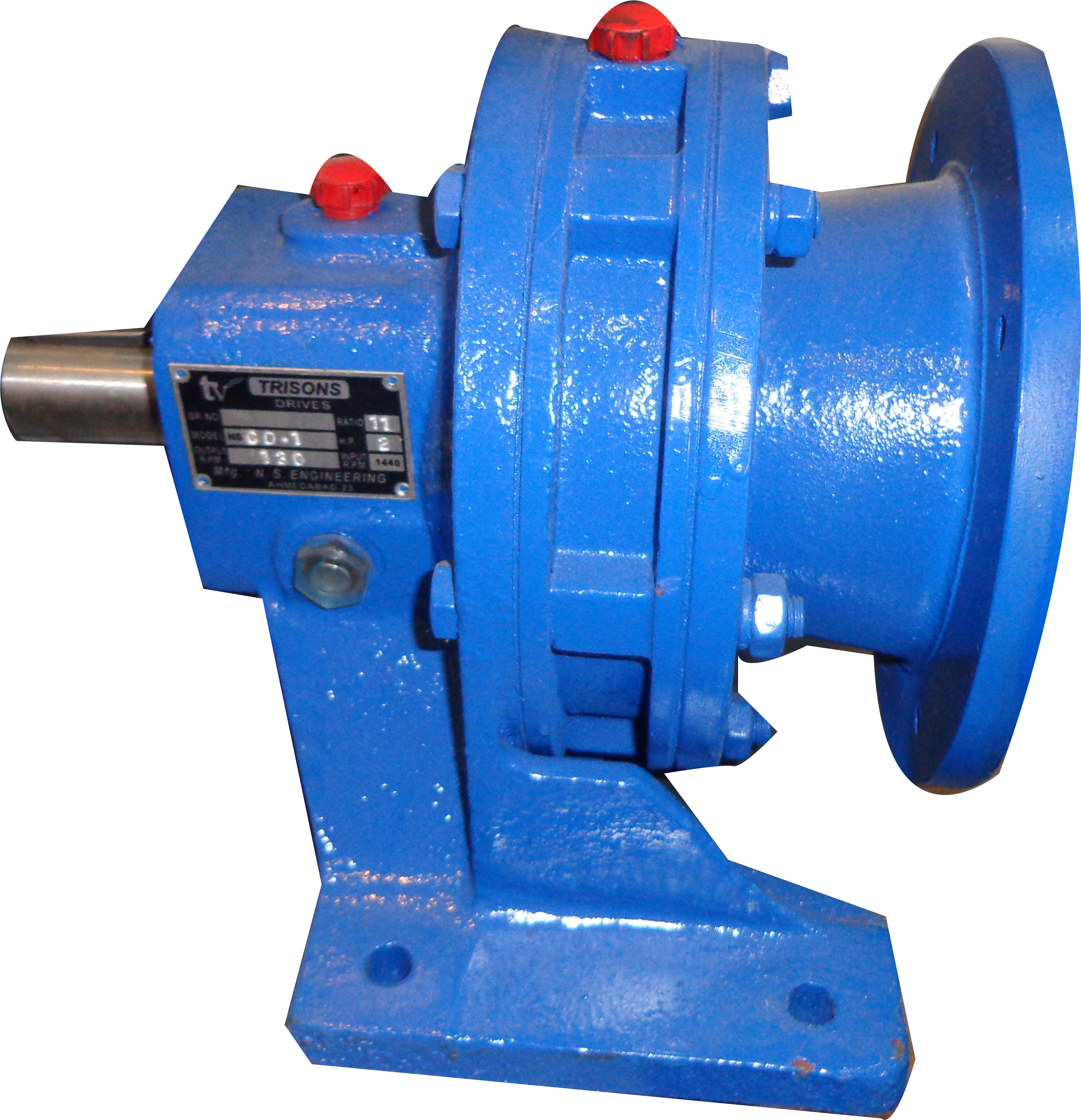

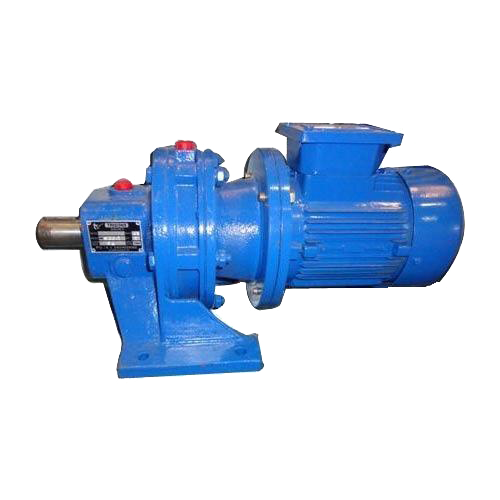

Cycloidal Lantern Reducer

Among the wide range of Power Transmission Products that N. S. TECHNOCRATS PVT. LTD. offers, the Cycloidal Lantern Reducer is a simple yet highly task oriented product. Rugged cast iron frame design and high performance makes this product by Trisons one of the most preferred machines in the Indian market.

The Cycloidal Lantern Reducer is designed on the principle of planetary gearing transmission. It is a combination of Cyclo gear and motor which helps the machine to rotate independently and control speed. The compact design, ease of operation and low noise allows this machine to be used in a wide variety of industries like Textile, Food and Beverages, Ceramic, Metallurgy, Lifting and Transportation and many others. It is known for little breakage and long life, reducing the running cost for our clients.

N. S. TECHNOCRATS PVT. LTD. is the noted Power Transmission Products Manufacturers in India that strives to adopt the latest technology in designing their machines. Best quality steel components and advanced manufacturing techniques help us to offer the best in the market machines at a highly competitive pricing.


NSCD

Type No. HO Mounting Dimension External Form Dimension
NSCD A1 A0 B1 B0 h N d0 H B A L L1 L2
0 100 58 90 38 150 15 4 12 221 185 120 214 163 Accoding the Size of Motor
1 120 69 110 68 240 15 4 14 275 280 160 262 194
2 140 76 150 60 280 20 4 14.5 306 320 200 320 246
3 160 79 200 80 340 25 4 19 365 390 250 394 296
4 200 93 260 75 380 30 4 22 425 430 320 497 372
5 240 53 340 80 440 35 4 22 519 490 400 617 448
































































NSCD No. Shaft Mounting Dimension





d1 b1 c1 l1 d2 b2 c2 l2





0 30 8 33 35 15 5 17 22





1 35 10 38 56 18 6 20.5 35





2 45 14 48.5 68 22 6 24.5 40





3 55 16 59 80 30 8 33 55





4 70 20 74.5 113 35 10 38.5 78





5 90 25 95 120 45 14 48.5 94





NSCDF

Type No. Mounting Dimension External Form Dimension
NSCDF D1 D2 E h R n d0 D L L1 L2
0 160 140 39 11 3 4 12 190 214 163 Accoding the Size of Motor
1 200 170 54 12 4 6 11 230 262 194
2 230 200 70 15 4 6 11 260 320 246
3 310 270 81 15 5 6 13 340 394 296
4 390 350 114 25 5 12 13 430 497 372
5 450 400 140 30 8 12 18 490 602 419




















































NSCDF No.
Shaft Mounting Dimension


d1 b1 c1 l1 d2 b2 c2 l2


0 30 8 33 35 15 5 17 22


1 35 10 38 56 18 6 20.5 35


2 45 14 48.5 68 22 6 24.5 40


3 55 16 59 80 30 8 33 55


4 70 20 74.5 113 35 10 38.5 78


5 90 25 95 120 45 14 48.5 94


NS2CD

Type No. HO Mounting Dimension External Form Dimension
NS2CD A1 A0 B1 B0 h n d0 H B A L1 L2 L3
10 120 69 110 68 240 15 4 14 275 280 160 273 51 Accoding the Size of Motor
20 140 76 150 60 280 20 4 14.5 320 320 200 318 51
31 160 79 200 80 340 25 4 19 390 390 250 378 68
41 200 93 260 75 380 30 4 22 430 430 320 462 68
42 200 93 260 75 380 30 4 22 430 430 320 490 74
52 240 53 340 80 440 35 4 22 490 490 400 560 74
53 240 53 340 80 440 35 4 22 490 490 400 582 98
















































































TYPE No. Shaft Mounting Dimension





d1 b1 c1 l1 d2 b2 c2 l2





NS2CD 10 35 10 38 56 15 5 17 22





20 45 14 48.5 68 15 5 17 22





31 55 16 59 80 18 6 20.5 35





41 70 20 74.5 113 18 6 20.5 35





42 70 20 74.5 113 22 6 24.5 40





52 90 25 95 120 22 6 24.5 40





53 90 25 95 120 30 8 33 55





NS2CDF

Type No. Mounting Dimension External Form Dimension
NS2CDF D1 D2 E h R n d0 D L L1 L2
10 200 170 54 12 4 6 11 230 273 51 Accoding the Size of Motor
20 230 200 70 15 4 6 11 260 318 51
31 310 270 81 15 5 6 13 340 378 68
41 390 350 114 25 5 12 13 430 462 68
42 390 350 114 25 5 12 13 430 490 74
52 450 400 140 30 6 12 18 490 560 74
53 450 400 140 30 6 12 18 490 582 98







































NS2CDF No.
Shaft Mounting Dimension


d1 b1 c1 l1 d2 b2 c2 l2


10 35 10 38 46 15 5 17 22


20 45 14 48.5 60 15 5 17 22


31 55 16 59 74 18 6 20.5 35


41 70 20 74.5 101 18 6 20.5 35


42 70 20 74.5 101 22 6 24.5 40


52 90 25 95 110 22 6 24.5 40


53 90 25 95 110 30 8 33 35


Cyclo Reducer Charec.NSCD

Model No. Motor Power(kw) Ratio
11 17 23 29 35 43 59 71 87
(r/min) (N.m) output Speed allowed (r/min)/output torque allowed (n.m)
NSCD 0 0.37 124/20 80/30 59/40 47/53 39-63 32/77 - - -
0.55 126/29 82/45 60/54 - - - - - -
0.75 126/40 82/61 - - - - - - -
1 0.55 126/36 82/56 60/76 48/77 40/93 32/114 24/156 - -
0.75 126/50 82/77 60/104 48/104 40/125 32/151 24/207 - -
1.1 127/72 82/112 61/151 48/152 40/184 - - - -
1.5 127/99 82/149 61/202 48/187 - - - - -
2.2 129/142 - - - - - - - -
2 0.75 126/50 82/77 60/104 48/131 40/137 32/168 24/231 20/278 -
1.1 127/71 82/110 61/150 48/189 40/200 33/227 24/336 20/333 -
1.5 127/98 82/151 61/207 48/261 40/272 33/334 24/380 - -
2.2 129/143 84/221 62/299 49/299 - - - - -
3 129/195 84/300 - - - - - - -
4 131/258 85/398 - - - - - - -
NSMCD 3 1.5 127/99 82/153 61/207 48/261 40/315 33/382 24/452 20/252 16/676
2.2 129/143 84/221 62/299 49/377 41/455 33/353 24/663 20/624 16/764
3 129/195 84/301 62/408 49/514 41/615 33/755 24/760 - -
4 131/256 85/396 63/534 50/672 41/820 - - - -
5.5 131/253 85/544 63/741 50/934 - - - - -
7.5 131/483 85/746 - - - - - - -
4 2.2 127/148 82/229 60/310 48/391 40/472 32/580 23/796 20/958 17/1174
3 127/202 82/313 60/243 48/533 40/644 32/792 23/1086 20/1307 17/1602
4 127/270 82/416 60/564 48/712 40/859 32/1055 23/1450 23/1450 -
5.5 137/370 82/574 60/776 48/979 40/1181 32/1451 - - -
7.5 127/506 82/783 60/1059 48/1335 40/1612 - - - -
11 127/743 82/1148 60/1553 - - - - - -

Motor Mounting Cyclod. reducer

Model No. Motor Frame (B5) Ratio
11 17 23 29 35 43 59 71 87
NSMCD 0 71 * * * * * *


80 * *






1 80 * * * * * * * * *
90 * * * *




2 80 * * * * * * * *
90 * * * * * * *

100/112 * * * *




3 90 * * * * * * * * *
100/112 * * * * * * *

132 * * * *




4 100/112 * * * * * * * *
132 * * * * *



Double Reducer Charec.

Model No. Motor Power (kW) Ratio (i)
121 (11 X 11) 187 (11 X 11) 289 (17 X 17) 385 (11 X 35) 473 (11 X 43) 595 (11 X 35)
NS2CD 10 0.75 11.5/225




0.55 11.5/165




0.37 11.5/111 7.4/171



20 0.75 11.5/495




0.55 11.5/363




0.37 11.5/244 7.4/376



31 1.5 11.5/990




1.1 11.5/726 7.4/1080



0.75 11.5/495 7.4/765 4.8/1146


0.55 11.5/363 7.4/560 4.8/867 3.6/1120

41 2.2 11.5/1452




1.5 11.5/990 7.5/1531



1.1 11.5/726 7.5/1122 4.8/1735


0.75 11.5/495 7.5/765 4.8/1183 3.6/1576 3/1936
42 2.2 11.5/1452




1.5 11.5/990 7.5/1531



1.1 11.5/726 7.5/1122 4.8/1735


0.75 11.5/495 7.5/765 4.8/1183 3.6/1576 3/1936
Download Brochure
